Background
In recent years, in response to global warming and climate change caused by greenhouse gas emissions,many countries have focused on promoting electric vehicles to replace traditional fuel vehicles. And the construction of charging piles is very important in the promotion of new energy vehicles.Therefore, a large number of charging pile projects have emerged around the world.
. Project Overview
The company is a charging pile manufacturer located in India, using our AC energy meter ADL100 and ADL3000 to match their AC charging pile. Our products have been using since 2019, and they are very satisfied with the quality of our products.
.Introduction of Acrel AC energy meters for charging pile
|
Item |
Shape |
Type |
Function |
|
Single Phase AC Energy Meter |
|
ADL10-E |
Din rail mounted;single-phase 60A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol). |
|
|
ADL100-ET |
Din rail mounted;single-phase 60A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol). energy pulse output; optional multi tariff. |
|
|
|
ADL200 |
Din rail mounted; single-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy, etc.; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. |
|
|
Three Phase AC Energy Meter |
|
ADL400 |
Din rail mounted; three-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. |
|
|
ADL3000-E |
Din rail mounted;three-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. |
|
|
DC Energy Meter |
|
PZ72(L)-DE |
Panel mounted, measure DC voltage, current, power; measure DC energy; direct connect voltage 0-1000V; current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall; RS485(Modbus protocol) |
|
|
DJSF1352 |
Wall mounted, measure DC voltage, current, power; measure DC energy; direct connect voltage 0-1000V; current measurement supports 75mV output of shunt, supports 0-5V, 0-20mA output of hall; RS485(Modbus protocol)
|
|
|
|
DJSF1352-RN |
Din-rail mounted, support optional two-channel DC voltage, current, power measurement; measure DC energy; direct connect voltage 0-1000V; current measurement support shunt 75mV output, support Hall sensor 0-5V, 0-20mA output; RS485 communication (Modbus protocol) |
|
|
Shunt |
|
AFL-T |
Common Specification: 300A/75mV |
|
Hall Sensor |
|
AHKC |
Common Specification: 1000A/5V |

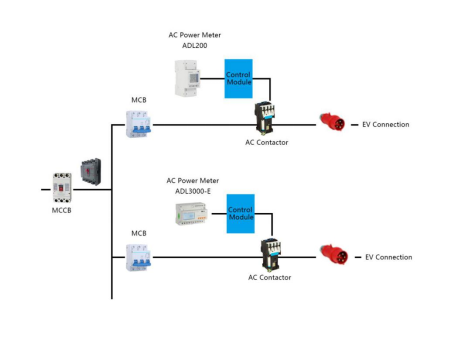

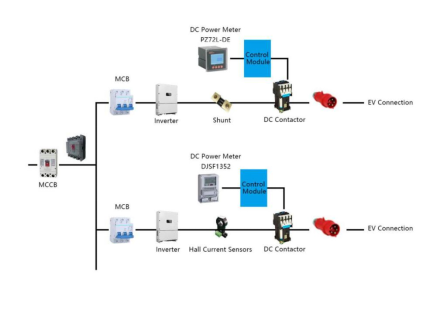

. Structure
